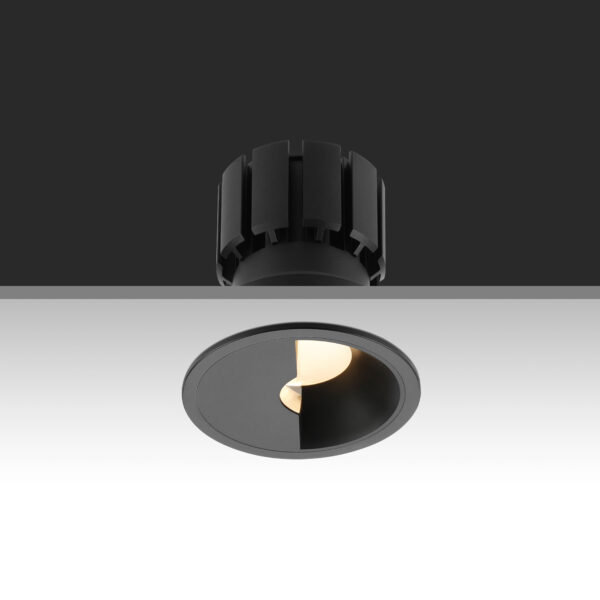

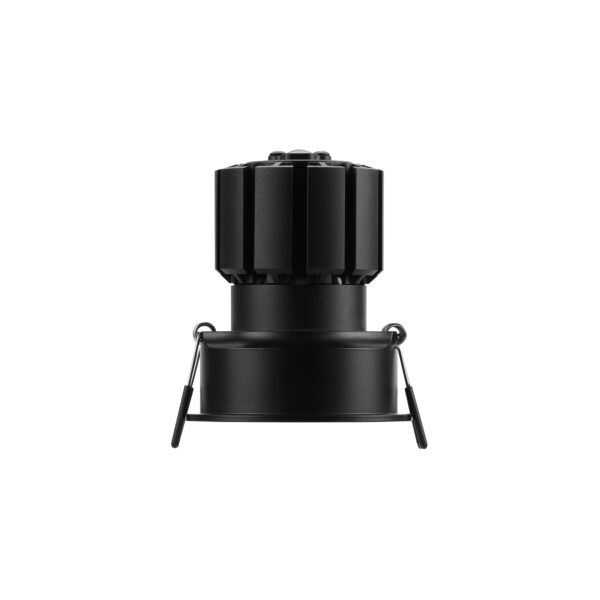

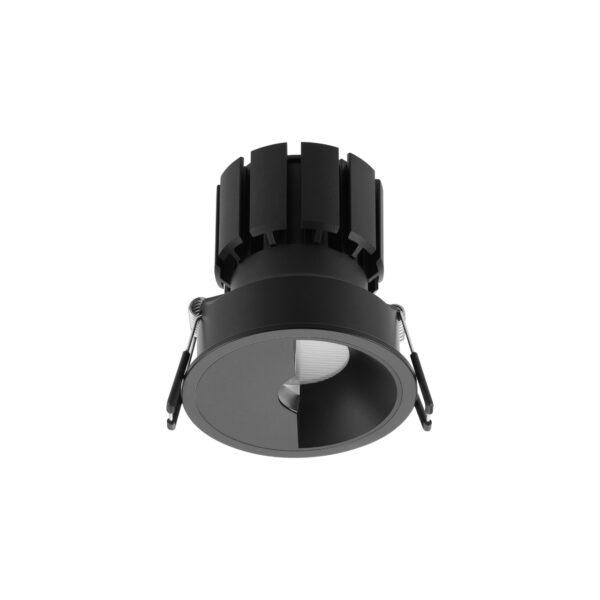

INFINITY DL134

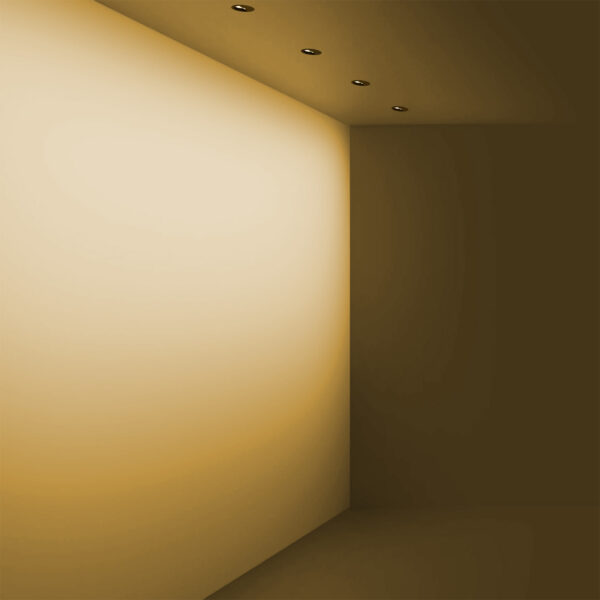

The INFINITY SERIES are the state of the art modular downlight range with anti-glare design (UGR<6). It uniquely replicates healthier sunlike colour spectrum, which offers even better colour rendering for richer reds and truer whites (CRI>98 & R9>98). The various trim & colour options allow for the INFINITY SERIES to be adapted to a wide range of indoor applications. Whether it’s to wallwash an art piece, create some feature lighting using various trim options, or just to be used as a standard high quality downlight, the INFINITY SERIES has got your requirements covered.
Key Features
✓ Lifespan > 35,000 hours
✓ Dimmable with external driver 220-240 VAC
✓ Available in 2700K, 3000K, 4000K, Dim to Warm
✓ CRI > 98
✓ IP40
✓ 15W with 124Lm per W
✓ SDCM < 3
✓ 2 years warranty
| Product Code | Power (W) | Color Temperature (K) | CRI | Luminance Flux (lm) | Beam Angle (°) | Input Voltage | Dimmability | External Driver | IES File |
|---|---|---|---|---|---|---|---|---|---|
| MPDL134INF15WD27K15DS | 15 | 2700 | 98 | 1200 | 15° | AC 220-240V | Yes | Yes |  |
| MPDL134INF15WD27K38DS | 15 | 2700 | 98 | 1200 | 38° | AC 220-240V | Yes | Yes | |
| MPDL134INF15WD30K15DS | 15 | 3000 | 98 | 1250 | 15° | AC 220-240V | Yes | Yes | |
| MPDL134INF15WD30K38DS | 15 | 3000 | 98 | 1250 | 38° | AC 220-240V | Yes | Yes | |
| MPDL134INF15WD40K15DS | 15 | 4000 | 98 | 1320 | 15° | AC 220-240V | Yes | Yes | |
| MPDL134INF15WD40K38DS | 15 | 4000 | 98 | 1320 | 38° | AC 220-240V | Yes | Yes | |
| MPDL134INF15WD27K15DF | 15 | 2700 | 92 | 1620 | 15° | AC 220-240V | Yes | Yes | |
| MPDL134INF15WD27K38DF | 15 | 2700 | 92 | 1620 | 38° | AC 220-240V | Yes | Yes | |
| MPDL134INF15WD30K15DF | 15 | 3000 | 92 | 1700 | 15° | AC 220-240V | Yes | Yes | |
| MPDL134INF15WD30K38DF | 15 | 3000 | 92 | 1700 | 38° | AC 220-240V | Yes | Yes | |
| MPDL134INF15WD40K15DF | 15 | 4000 | 92 | 1800 | 15° | AC 220-240V | Yes | Yes | |
| MPDL134INF15WD40K38DF | 15 | 4000 | 92 | 1800 | 38° | AC 220-240V | Yes | Yes | |
| MPDL134INF15WDTW | 15 | 1800-3000 | 95 | 1050 | 38° | AC 220-240V | Yes | Yes | |
